Basic Hydraulic Principles

Hydraulic Swash Plate Pump

A constant displacement hydraulic pump uses a fixed swash plate to drive a set of pistons in and out as they revolve.





At the top of their stroke, the pistons move over the inlet port and draw in fluid at low pressure. The fluid is then carried round and expelled through the outlet port at high pressure as the swash plate drives the piston into the cylinder.

To demonstrate this principle, Sphaera's interactive hydraulic swash plate pump features 8 revolving cylinders that provide a clear indication of hydraulic pressure and flow.

Operation can be viewed at fast or slow speed.

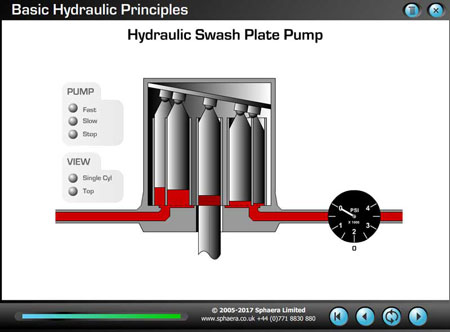

Hydraulic Swash Plate Pump

A constant displacement hydraulic swash plate pump.
