DME Trainer

The DME Trainer is a fully interactive CBT application that will run on a standard PC in the classroom. It features a 3D environment with fully controllable airliner, DME Panel, Nav Panel and 3 DME ground stations (a VOR/DME, a DME and an ILS) enabling instructors to clearly explain how aircraft navigate between them using X and Y channel interrogations.

What Can It Do?

It provides everything an instructor needs to clearly describe, explain or demonstrate:

Selection of VHF radio navigation frequencies via a DME Panel or Nav Panel
Use of remote tuning (to tune the DME receiver to the frequency set on the Nav Panel)
Display of calculated groundspeed and time-to-station
Emission of aircraft interrogating DME pulses using X or Y channels
Emission of DME responses from 3 types of ground stations (a VOR/DME, a DME and an ILS)
Format of X and Y channel interrogations
Format of X and Y channel responses

Other Similar CBT Products for Radar and Radio Navigation

Air Weather Avoidance Radar Trainer

The Air Weather Radar Trainer features gain, mode, range and tilt controls enabling instructors to explain how to analyse a range of weather cells and ground features.

ILS Trainer

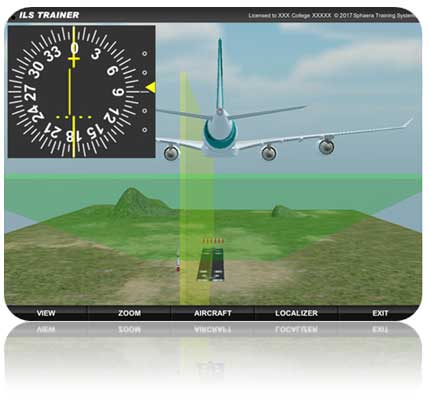

The ILS Trainer features a wide range of functioning ILS instruments (including CDI, HSI and EFIS), nav panel and clear visualisation of localizer beam and glideslope.

ATC Transponder Trainer

The ATC Transponder Trainer features an altimeter, ATC Panel, animated squawk codes and ground ATC radar station with fully controllable PSR/SSR and PPI display.

Need Something for Your Classroom but Can't Find a Supplier?

Don't worry. We can provide fabulous bespoke training material for any subject, made specially to your requirements!

DME Trainer

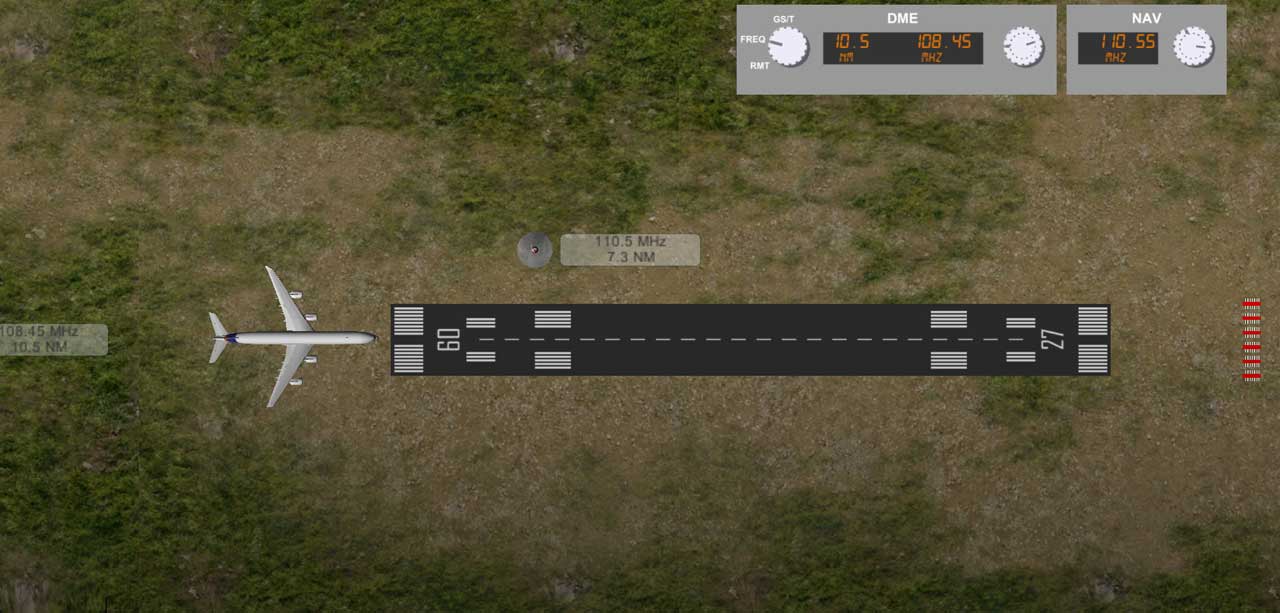

DME Panel, Nav Panel and ground stations (VOR, DME, ILS)

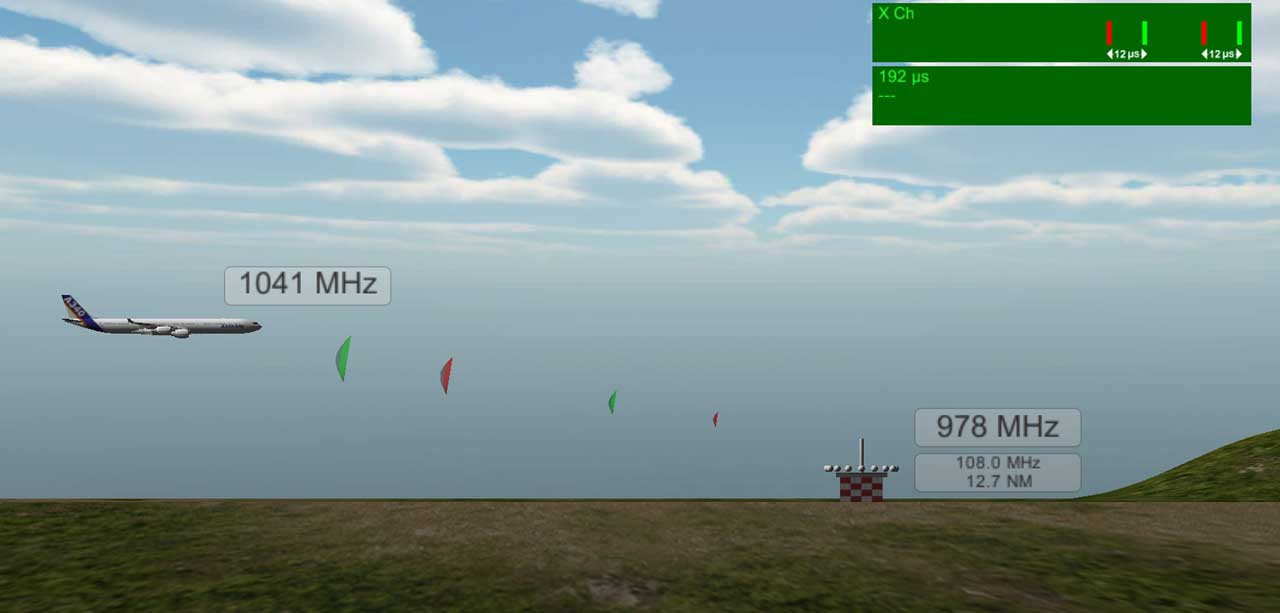

Animated X or Y mode interrogation pulses

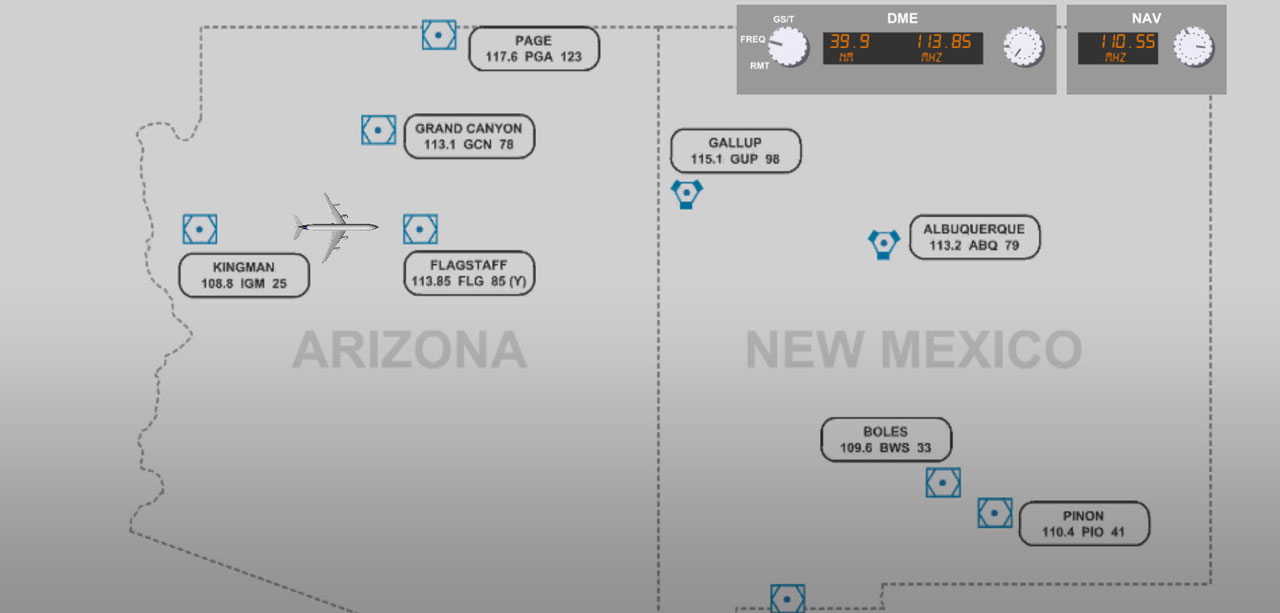

Map view with 10 ground stations to navigate between
