Astable/Bistable Circuit

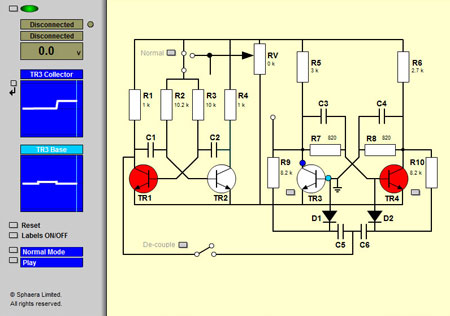

Sphaera's interactive astable/bistable circuit features a bistable circuit fed by pulses from an astable circuit through a steering circuit.

The control panel on the left of the screen features an integrated digital multimeter and 2 oscilloscopes that can be used to demonstrate or practise methodical fault diagnosis procedures using voltage checks and resistance checks. Included in the package are 3 faulted circuits.

The digital multimeter and oscilloscopes also assist in the demonstration or observation of the circuit operation, as measurements can be taken from any part of the circuit at any time. The instructor or the student is also provided with the flexibility of running the simulation in various modes, such as Key Event Mode, which automatically pauses the simulation whenever events designated as key events occur.

You can purchase this product online now by visiting our products list or, for more information, contact us.

Astable Circuit

A simulation of an astable/bistable circuit.

.
