Aviation Training Systems

Pressure Indication Trainer

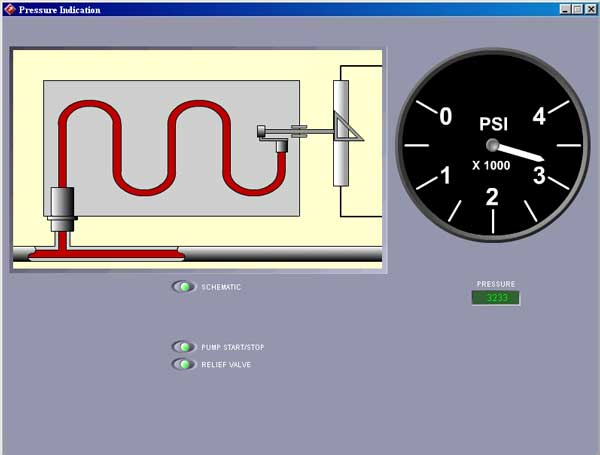

The pressure indication trainer provides the instructor or student with a typical hydraulic pressure gauge that takes its input from an animated schematic diagram of a Bourdon tube high pressure transmitter.





The user may control the pressure within the system in order to demonstrate or observe the behavior of the Bourdon tube and wiper arm as the pressure changes.

Bourdon Tube high pressure transmitter

A high pressure transmitter with Bourdon tube and wiper arm.



For more on aircraft hydraulic systems and principles see:

This product can be purchased as part of an aircraft instrumentation package which also includes:

You can purchase this product online now by visiting our products list or, for more information, contact us.

Hydraulic pressure gauge

Typical hydraulic pressure gauge.



For more information on instrument trainers or training material for specific systems, click on the links below:

.
